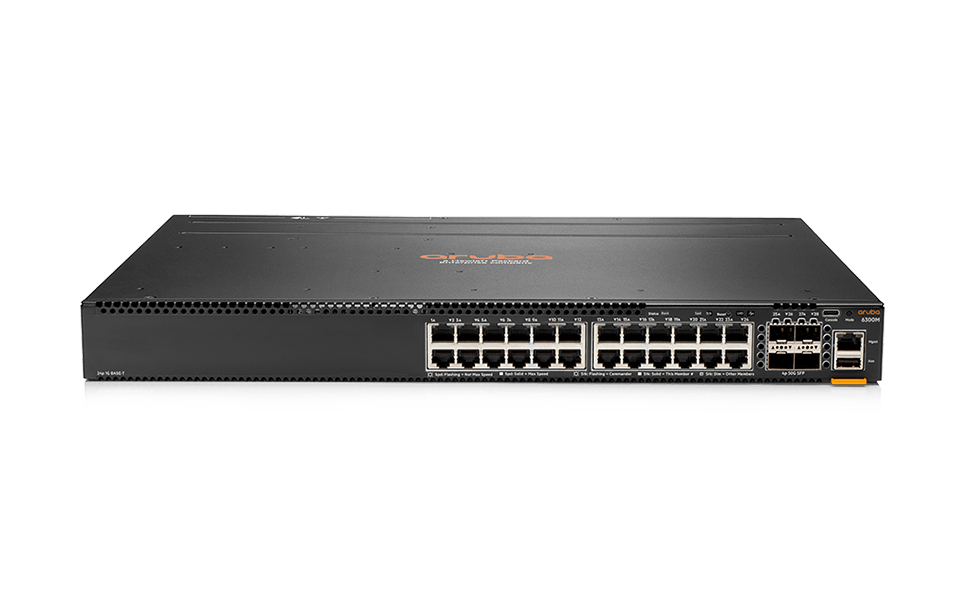

Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch JL664A

Expected dispatch on : 0December 28 - 29

Part No JL664A

Versatile switches ready for cloud, mobile, and IoT
Created for game-changing operational efficiency with built-in security and resiliency, the CX 6300 switches provide the foundation for high-performance networks.
Layer 3 switching
Stackable switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS.

Scalable, always on performance
High-performance 880 Gbps system switching capacity, 660 MPPS of system throughput, and redundant, hot swappable power supplies and fans.

Speed and power for users and IoT
Convenient built-in wire speed 10/25/50GbE uplinks, high-density SFP+, and choice of HPE Smart Rate multi-gig with 90W PoE on every port.

Quote

Details

Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch JL664A

Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch (JL664A):

24x ports 10/100/1000BaseT ports
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)/li>
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
One field-replaceable, hot-swappable fan tray (included), one empty slot

Management ports:

1x USB-C Console Port
1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle for use with Aruba CX Mobile App

More Information

More Information
Part No	JL664A
GTIN-/EAN-Code	0190017339504
UPC	190017339504
Dimensions Length (inch)	15.2
Dimensions Width (inch)	17.4
Dimensions Height (inch)	1.73
Brand	Aruba Networks
Switches	PoE
Ports	24
